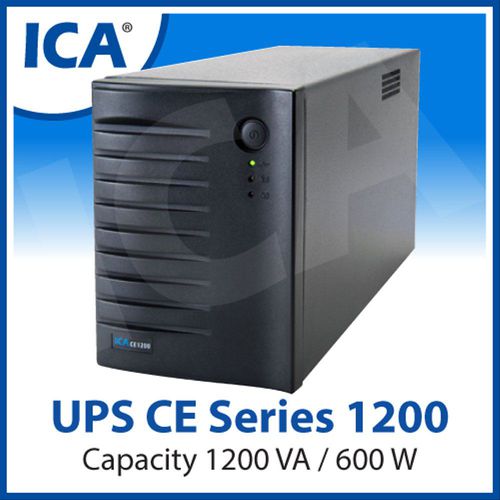

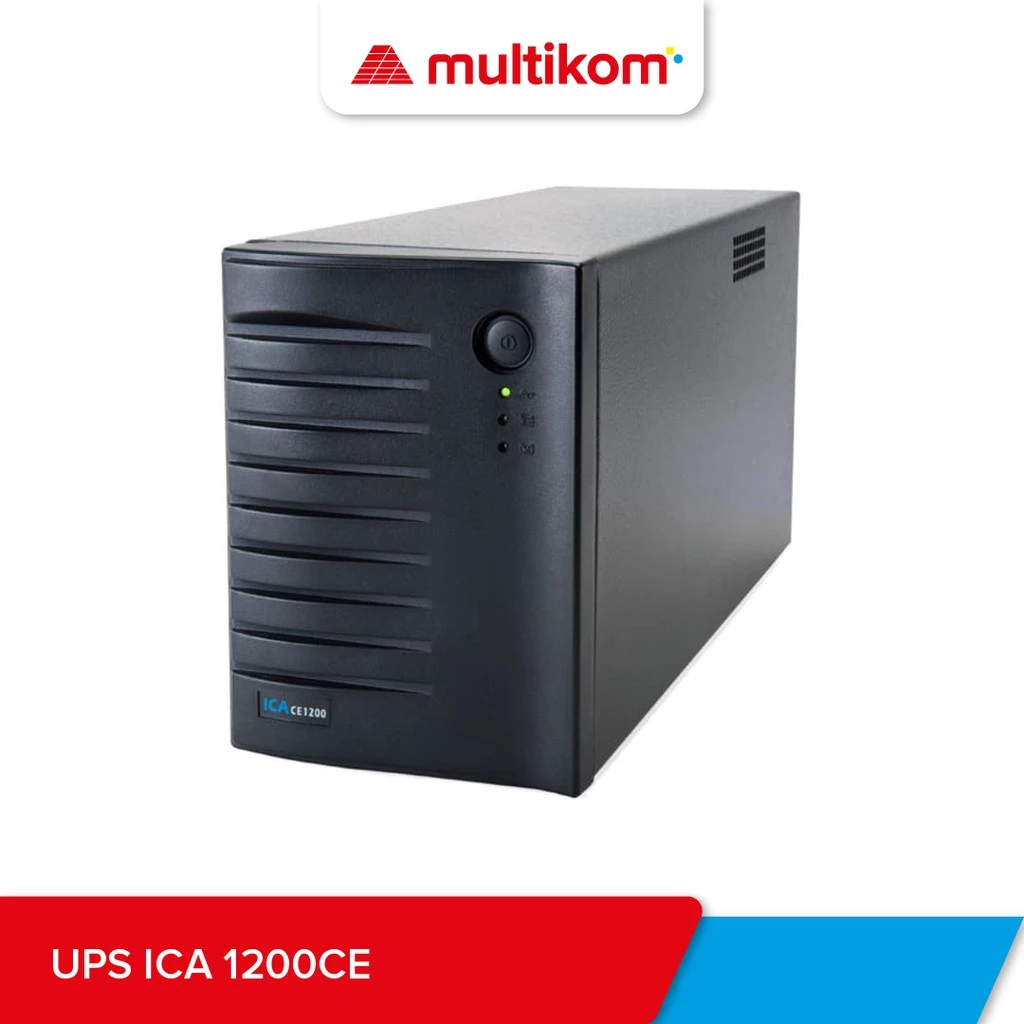

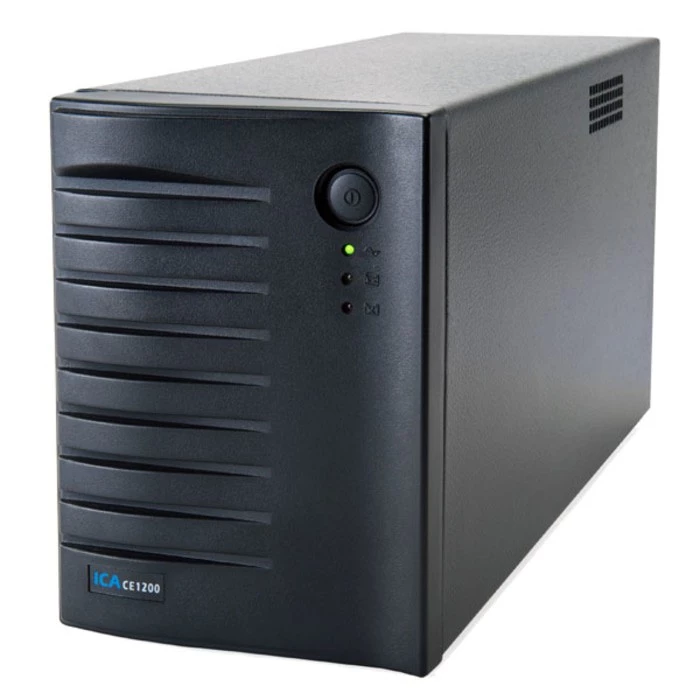

UPS ICA CE1200

Description

ICA UPS CE-1200 Capacity 1200 VA, inverter works only when the AC input voltage low or loss. When the AC input voltage in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage low or loss inverter will replace it and supply a stable AC voltage within a very short transfer time.

TECHNICAL INFORMATION

Description : UPS CE1200

Capacity : 1200 VA / 600 W

AC Voltage : 160 – 250 V

AC Current : 2.9 A

AC Frequency : 50 ± 3 Hz

AC Protection Fuse : 6.3 A

DC INT Battery : 2 x 12 V, 7 Ah

INV Waveform : SYNTHESIZED SINEWAVE

INV Voltage : 220 ± 5% V

INV Frequency : 50 Hz

INV Efficiency : >80 %

CHG Type : CONSTANT VOLTAGE

CHG Voltage : 27.0 V

CHG Current : 1.5 A

Transfer Time : <4 ms

Back Up Time : 10 min

Indicator : LED & BUZZER

Opera Temp : 0 – 40 °C

Dimension(DxWxH) : 390 x 145 x 195 mm

Weight : 15.2 Kg
